Probabilistic approach to feedback control enhances multi-legged locomotion on rugged landscapes

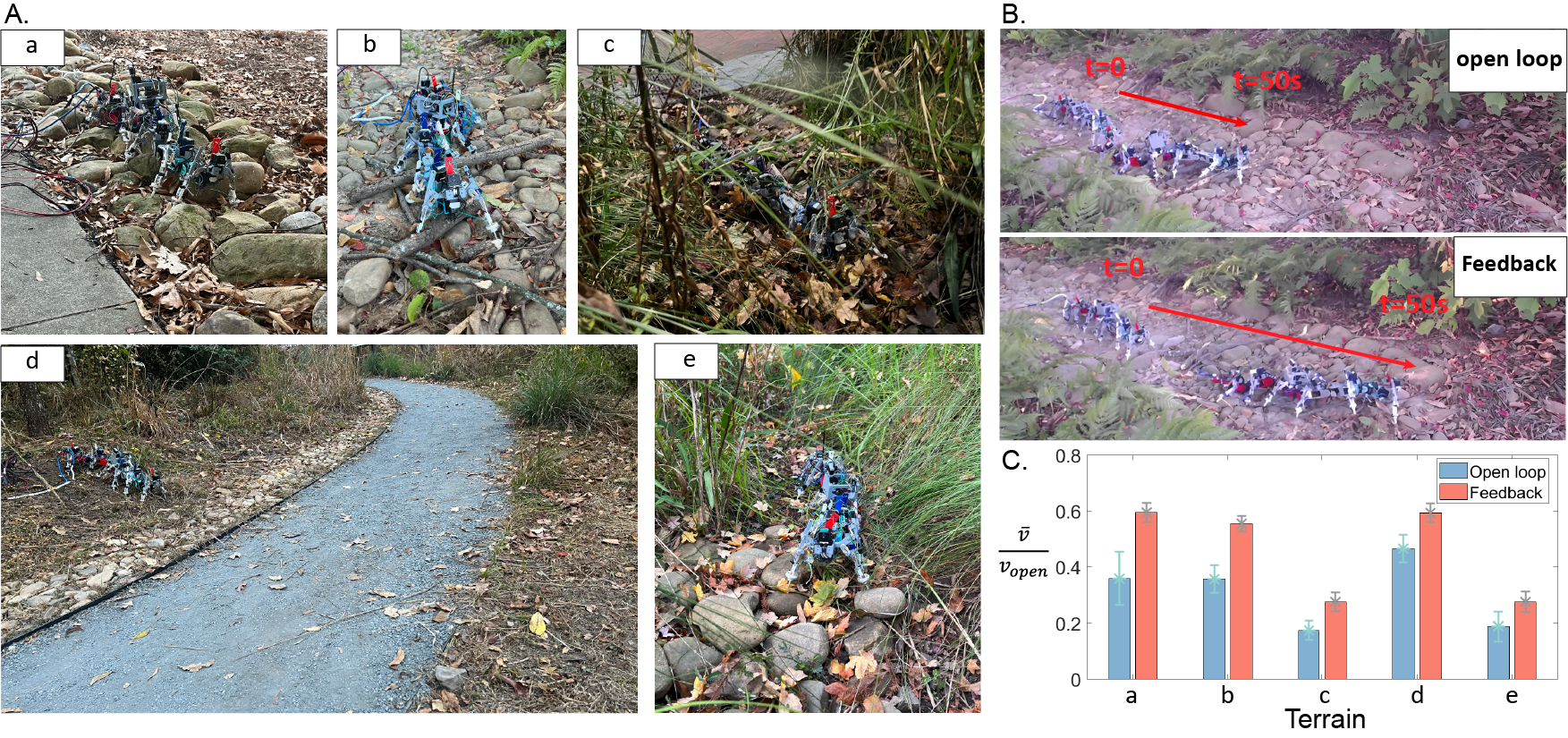

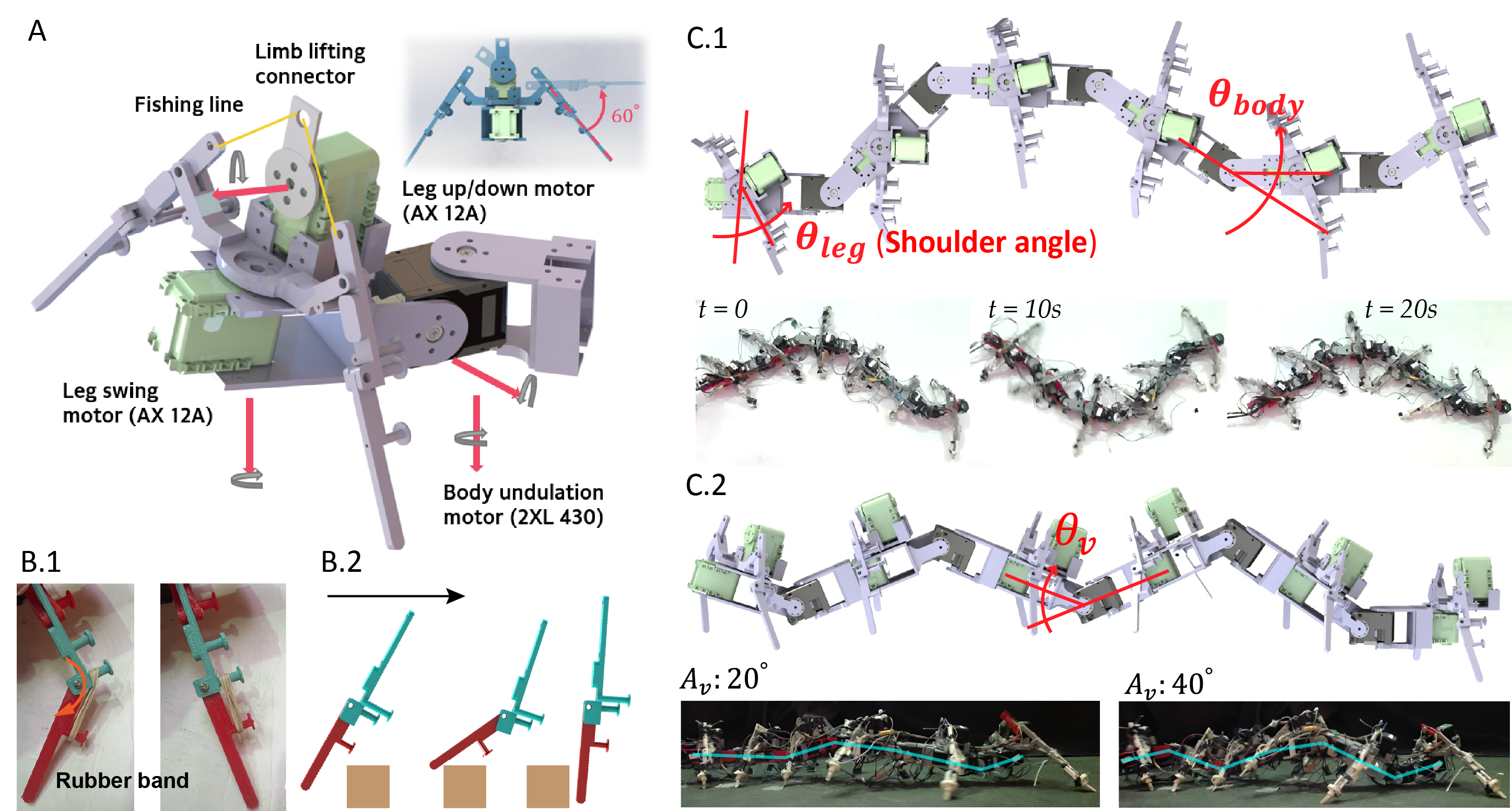

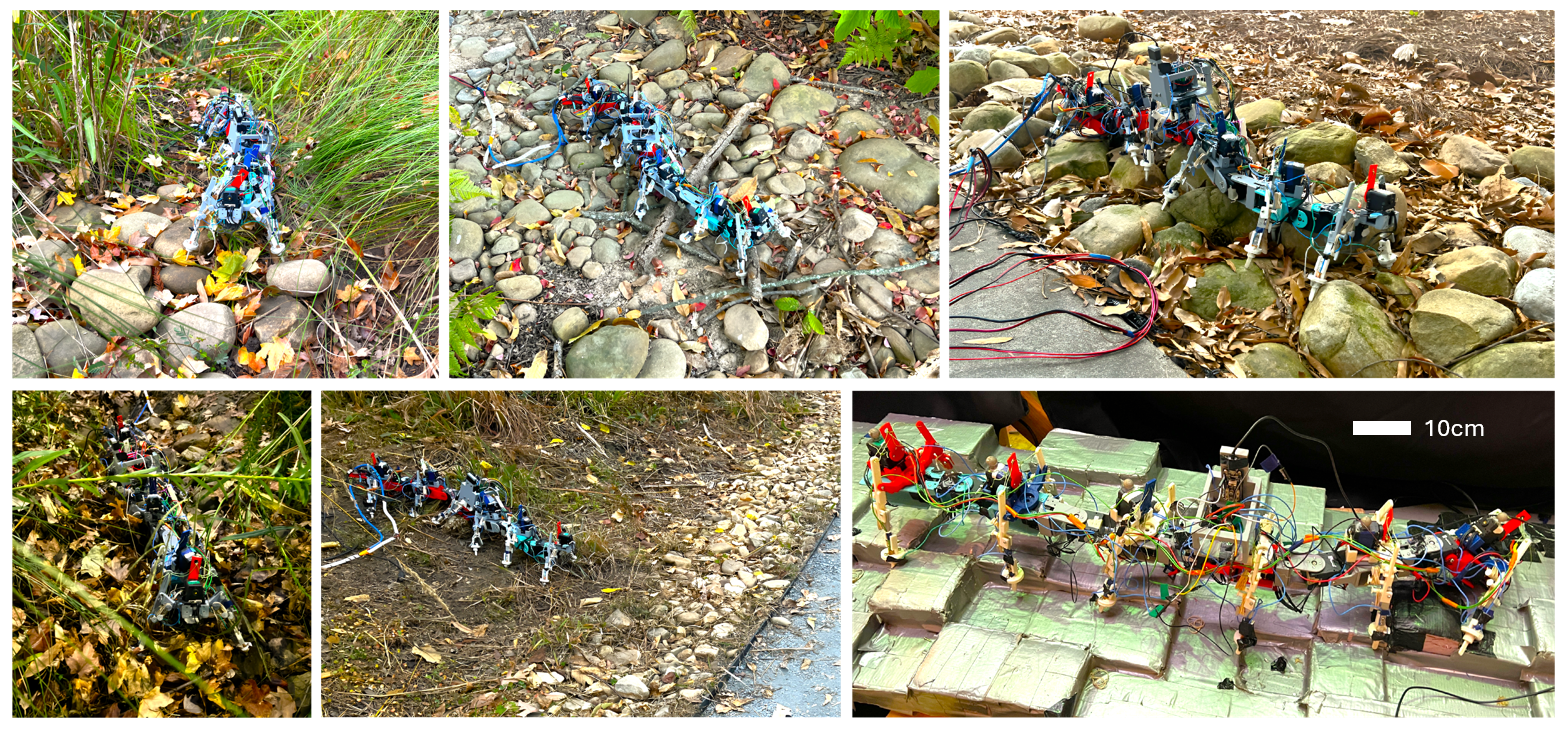

Achieving robust legged locomotion on complex terrains poses challenges due to the high uncertainty in robot-environment interactions. Recent advances in bipedal and quadrupedal robots demonstrate good mobility on rugged terrains but rely heavily on sensors for stability due to low static stability from a high center of mass and a narrow base of support [1]. We hypothesize that a multi-legged robotic system can leverage morphological redundancy from additional legs to minimize sensing requirements when traversing challenging terrains. Studies suggest [2], [3] that a multi-legged system with sufficient legs can reliably navigate noisy landscapes without sensing and control, albeit at a low speed of up to 0.1 body lengths per cycle (BLC). However, the feedback control framework to enhance speed of multi-legged robots on challenging terrains remains underexplored due to diverse environmental interactions. Such complexity makes it difficult to identify the key parameters to control in these high-degree-of-freedom systems. Here, in laboratory and field experiments we demonstrate that a vertical body undulation wave helps to mitigate environmental disturbances affecting robot speed; these observations are supported by a probabilistic model. Using such insights, we introduce a control framework which monitors foot-ground contact patterns on rugose landscapes using binary foot-ground contact sensors to estimate terrain rugosity. The controller adjusts the vertical body wave based on the deviation of the limb’s averaged actual-to-ideal foot-ground contact ratio, achieving a significant enhancement of up to 0.235 BLC on rugose laboratory terrain. We observed a 50% to 60% increase in speed and a 30% to 50% reduction in speed variance compared to the open-loop controller. Additionally, the controller operates in complex terrains outside the lab, including pine straw, robot-sized rocks, mud, and leaves.
